• Small chip suitable for surface mounting
• High inductance with Ferrite material
• Low resistance
• Magnetic Shield
Applications：
True Wireless Headset(TWS), NB-IoT module, Face ID Module, Smartwatch.
Example：
.jpg)
TWL-F Series

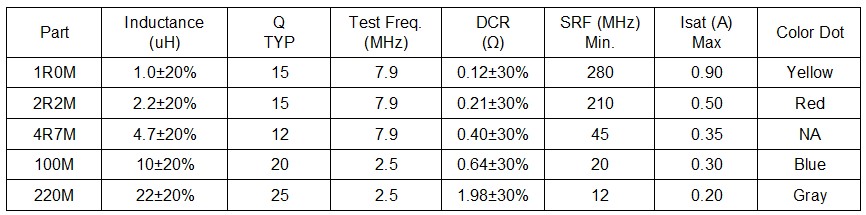

TWL0805F-SS001

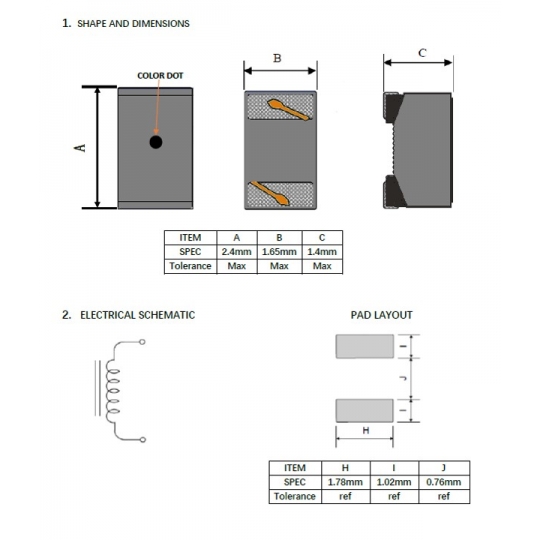

Wire Wound Chip Inductor - Shield Ferrite 0805(2012)
詳細介紹
• Small chip suitable for surface mounting
• High inductance with Ferrite material
• Low resistance
• Magnetic Shield
Applications：
True Wireless Headset(TWS), NB-IoT module, Face ID Module, Smartwatch.
Example：
